The Barsha Pump Variants & Specification
The Barsha Pump is a water-wheel propelled pump that utilizes
the energy of flowing rivers and canals to pump water, without
requiring any fuel or electricity.

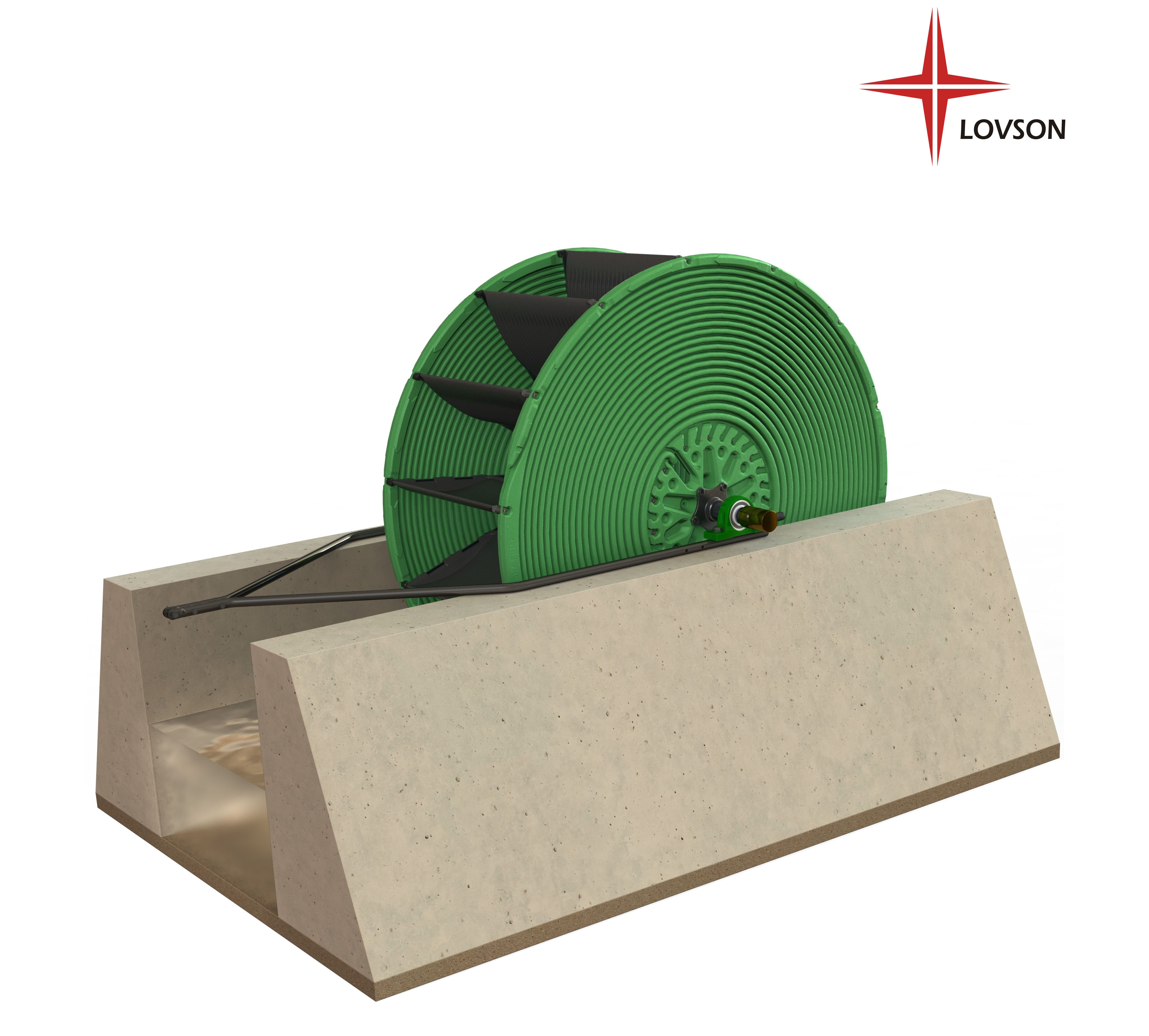

Barsha Pump – Rivers – Anchored Version
Parameters | Values | |
---|---|---|
Output [Pipe size: - 1.5 inches(40mm) for distance greater than 200 meters - 1.25 inch (32mm) otherwise] |
Max. Height* | 20 meters |
Max. Distance* | 2 kilometers | |
Max. Flow Rate* | 0.5 liters/second 40,000 liters per day | |
Input Conditions Required | Min. width required | 160 cm |
Min. Depth required | 30 cm | |
Min. speed required | 1 m/s | |
Min. Flow rate required | 300 liter/second | |
Dimension | Width | 155 cm |
Length | 286 cm | |
Height | 159 cm | |
Weight | 92 kg |
*The performance values mentioned above are the maximum values at the optimum input conditions.

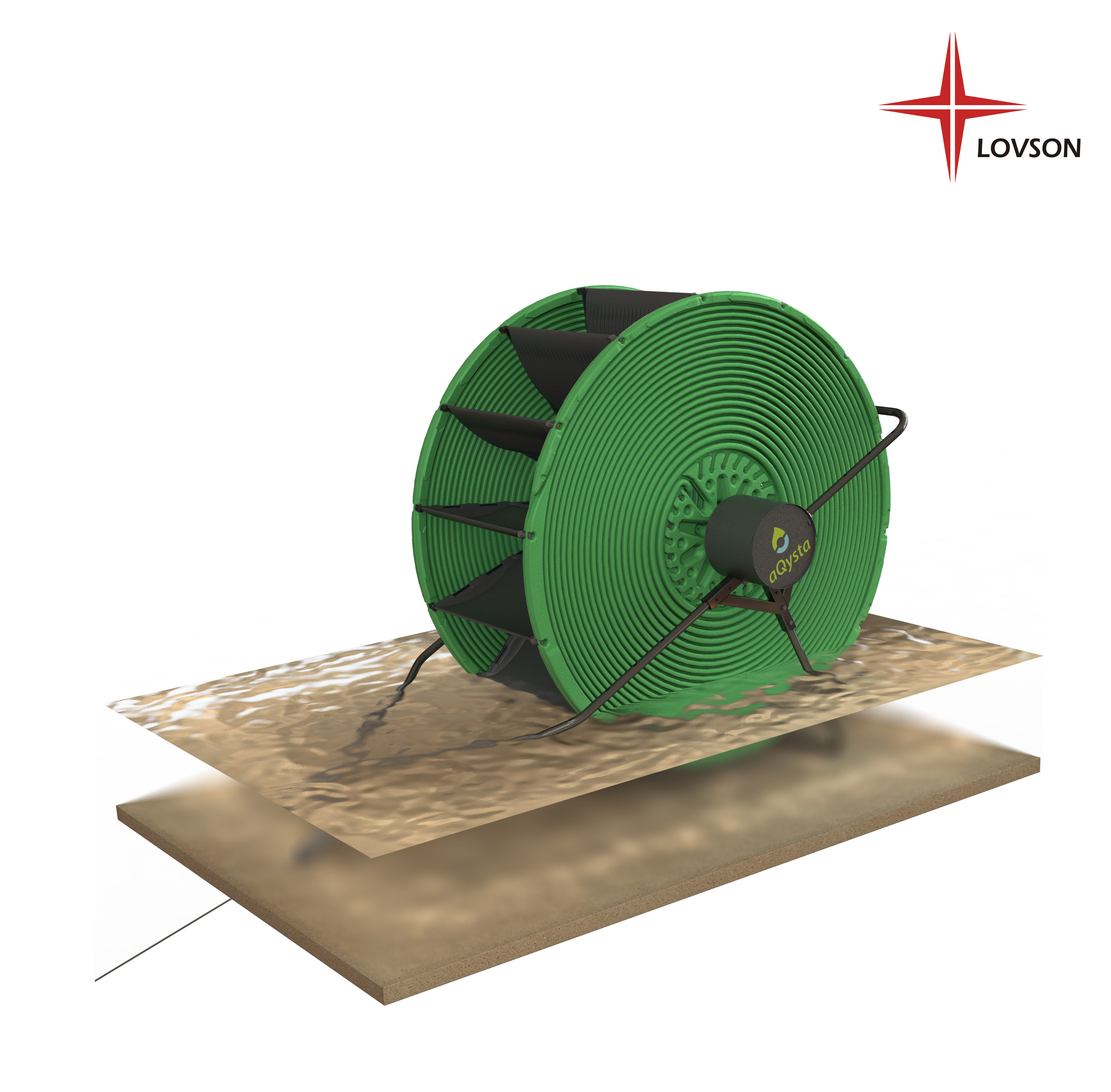

Barsha Pump – Rivers – Canal Version
Parameters | Values | |
---|---|---|
Output [Pipe size: - 1.5 inches(40mm) for distance greater than 200 meters - 1.25 inch (32mm) otherwise] |
Max. Height* | 20 meters |
Max. Distance* | 2 kilometers | |
Max. Flow Rate* | 0.5 liters/second 40,000 liters per day | |
Input Conditions Required | Min. width required | 150 cm |
Min. Depth required | 20-50 cm | |
Min. speed required | 1 m/s | |
Min. Flow rate required | 300 liter/second | |
Dimension | Width | 144 cm |
Length | 176 cm | |
Height | 159 cm | |
Weight | 80 kg |
*The performance values mentioned above are the maximum values at the optimum input conditions.

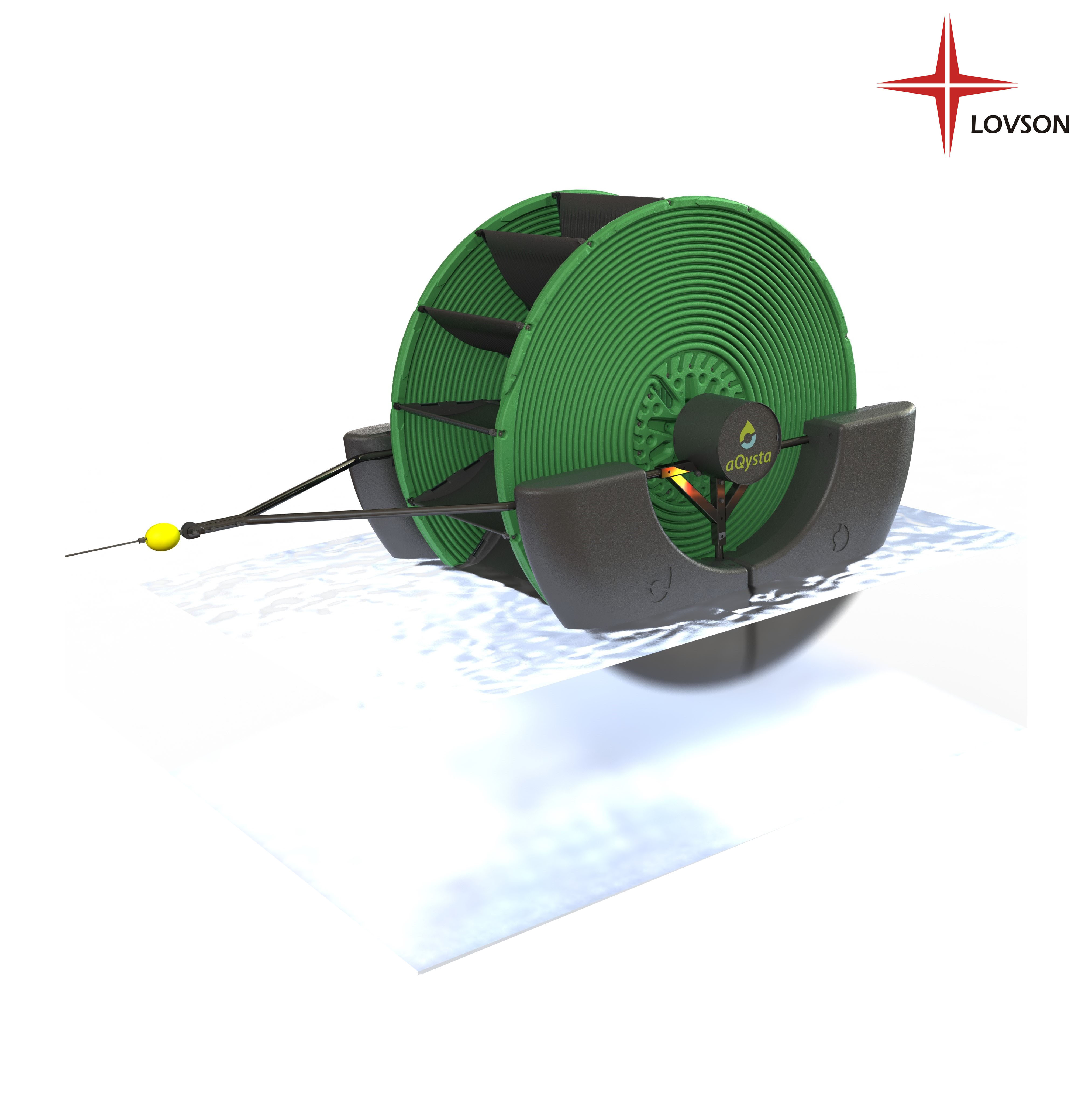

Barsha Pump - Big Canals –Floating Version
Parameters | Values | |
---|---|---|
Output [Pipe size: - 1.5 inches(40mm) for distance greater than 200 meters - 1.25 inch (32mm) otherwise] |
Max. Height* | 20 meters |
Max. Distance* | 2 kilometers | |
Max. Flow Rate* | 0.5 liters/second 40,000 liters per day | |
Input Conditions Required | Min. width required | 160 cm |
Min. Depth required | 30 cm | |
Min. speed required | 1 m/s | |
Min. Flow rate required | 300 liter/second | |
Dimension | Width | 155 cm |
Length | 286 cm | |
Height | 159 cm | |
Weight | 92 kg |
*The performance values mentioned above are the maximum values at the optimum input conditions.
